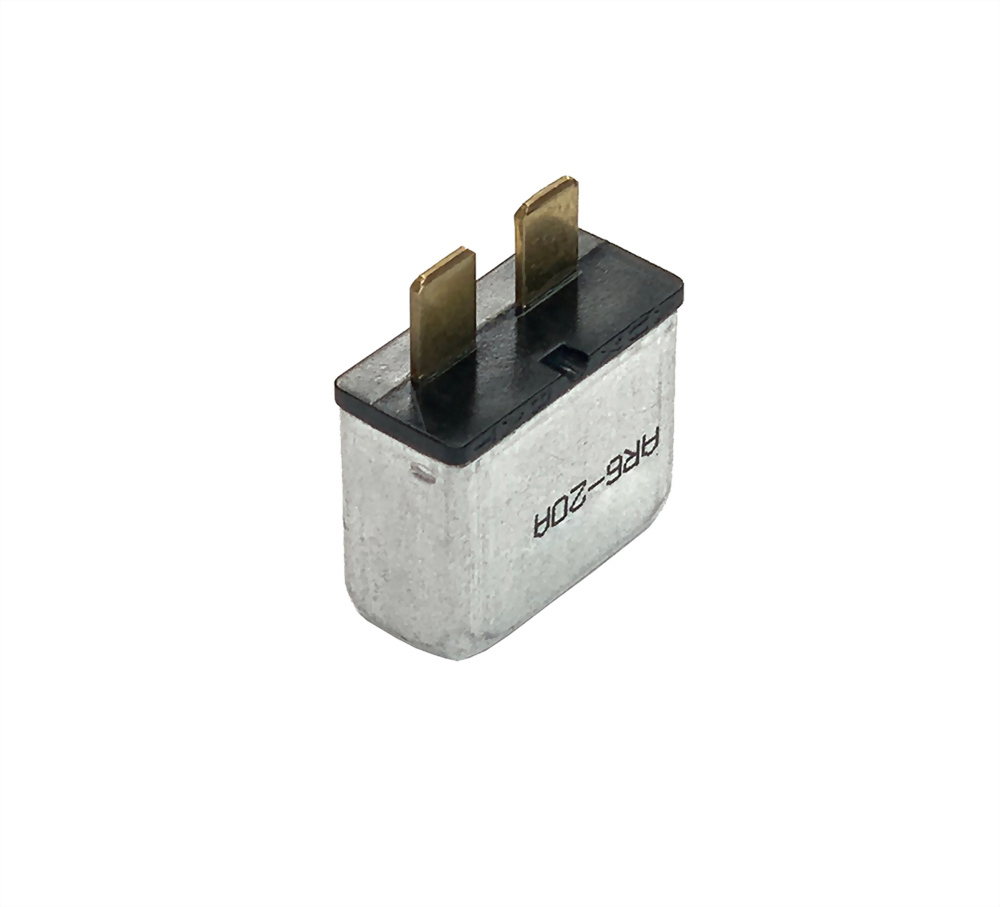

Technical data

•      Current rating range: 3~30A

•      Input voltage rating: 12/24 VDC

•      Compliances: SAE J553

•      Contact Endurance: 125Vac X150% of rated current >500 cycles

125Vac X200% of rated current >200 cycles

•      Insulation Resistance: >100MOHM (DC 500V)

•      Dielectric Strength: > 1,500VAC/min.

•      Breakering Capacity: 4 times rated current

•      Automotive Type: Auto- Reset: 12VDC Automotive Type I

•      Reset Time: Within 60 SEC

Mechanical/ Environmental Data

•      Operating Ambient Temperature: -10℃ to +60℃

•      Storage Temperature Rating: -40℃ to +100℃

•      Termination: 250"(6.3mm) quick connects or solder terminals

Typical applications

Battery chargers, trucks, buses, RV's, trolling motors, etc.

Calibration(at25°C)

•    100% of Rated Current: Hold, No Trip

•    150% of Rated Current: Trip within 1 Hour

•    200% of Rated Current: 5-25 sec Trip

•    300% of Rated Current: 1.5-5 sec Trip
