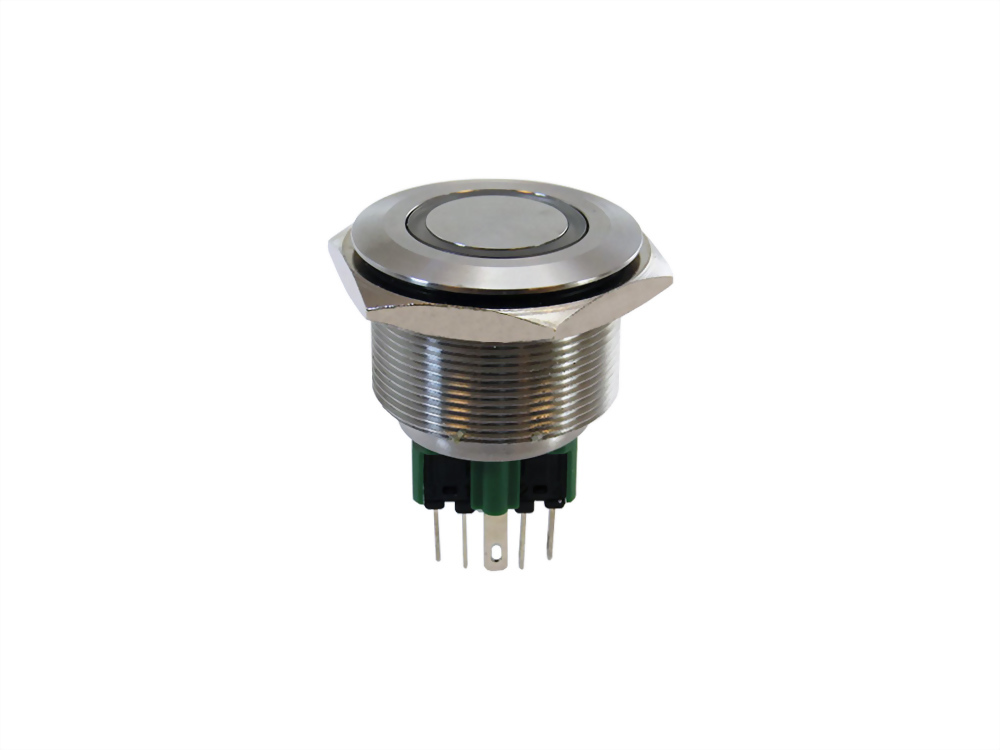

SPECIFICATION:
Rating: 5A 250V AC
Mounting Hole: Ø28 mm
Insulation Resistance: 1,000MΩ Mim.
Contact Resistance: 50MΩ Max.
Dielectric Strength: AC 2,000V 1 Minute
Operating Temperature: -20oC ~ +55oC
Mechanical Life: 500,000 cycles
Electrical Life: 50,000 cycles
FUNCTION:
＊1No 1Nc , 22 = 2No 2Nc
＊ Lock Type , □ = Non Lock Type
＊ LED Color : Red , Green , Yellow , Orange , Blue , White
＊ LED Lamp : 6V,12V,24V,110V,220V AC/DC
＊Cover : Stainless steel
＊IP67
Approvals : RoHS
