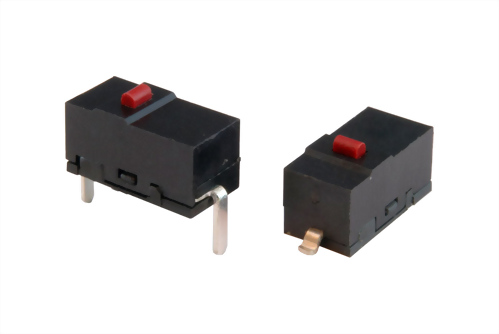

Микропереключатель (SSM10-01N)

SPECIFICATION:

Rating: 10.1A 125/250V AC

SIZE: 19.8 x 9.7 x 6.5mm

Operating Force: 70g

Lever: 21.6mm

Terminal: Solder Type (2.8mm)

Withatand Voltage: AC 1,000 V 1 Minute

Insulation Resistance: 100 MΩ Mim. 500V DC

Contact Resistance: 50MΩ

Operating Temperature: -25oC ~ +80oC

Mechanical Life: 1,000,000 Cycles

Electrical Life: 6,000 Cycles

Approvals : RoHS,UL,CE
