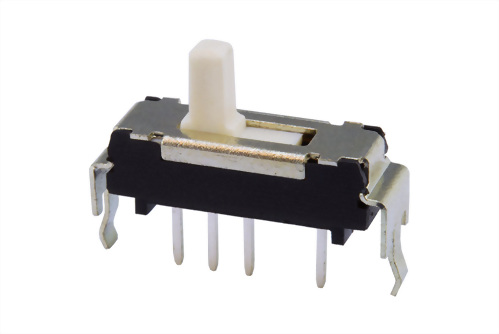

MINI SLIDE SWITCH
SPECIFICATION:
Rating: 3A 120V DC
Pitch: 2.54mm
Dielectric Strength: AC 1,000 V 1 Minute
Insulation Resistance: 1,000 MΩ Mim. 500V DC
Contact Resistance: 10MΩ
Operating Temperature: -30oC ~ +85oC
Electrical Life: 30,000 Cycles
FUNCTION:
DS-12M: ON-ON
DS-12M-3: ON-OFF-ON
Approvals : RoHS
