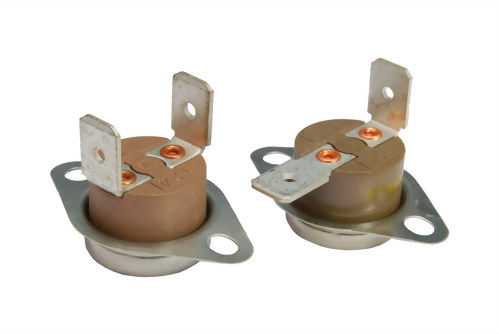

Предохранитель (SWT24R)

SPECIFICATION:
Rating: 15A 125V AC , 10A/16A 250V AC
Operating Temperature: 50oC ~ 175oC
Differential: 10 ~ 30K (15K Standard)
Temp Tolerance: Operating Temp. ±3K ±5K
Heat Durability: 220℃ Max.(PPS)
Contact Resistance: 50MΩ
Insulation Resistance: 100 MΩ Mim. 500V DC
Dielectric Strength: AC 1,000 V 1 Minute
Operating Life: 100,000 Cycles(15A 125V AC)
(10A 250VAC)
10,000 Cycles (16A 250V AC)
Weight: 5.2g max.
Approvals : RoHS,CUS,ENEC17
